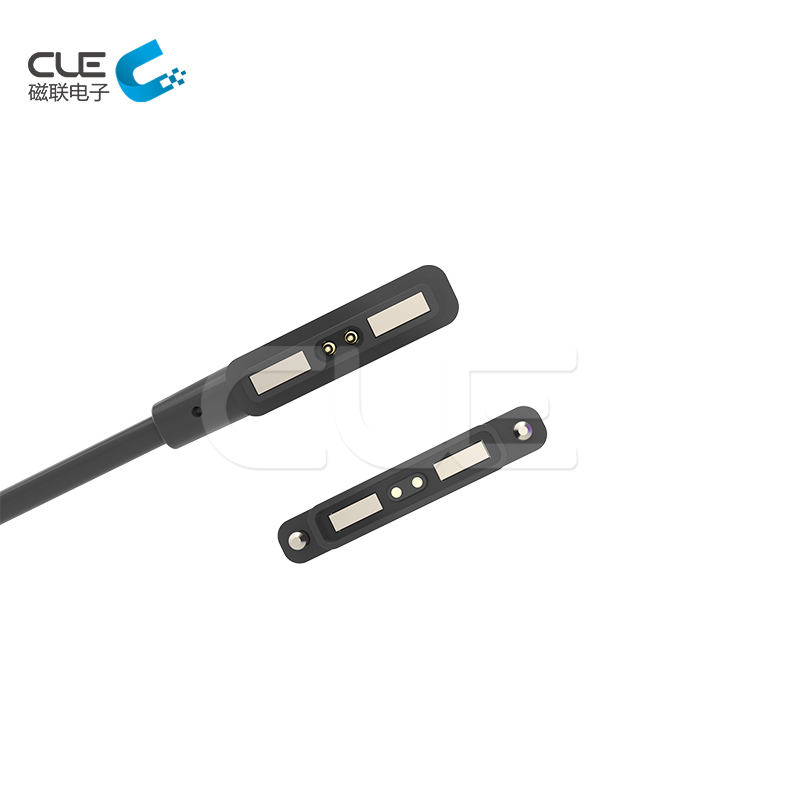

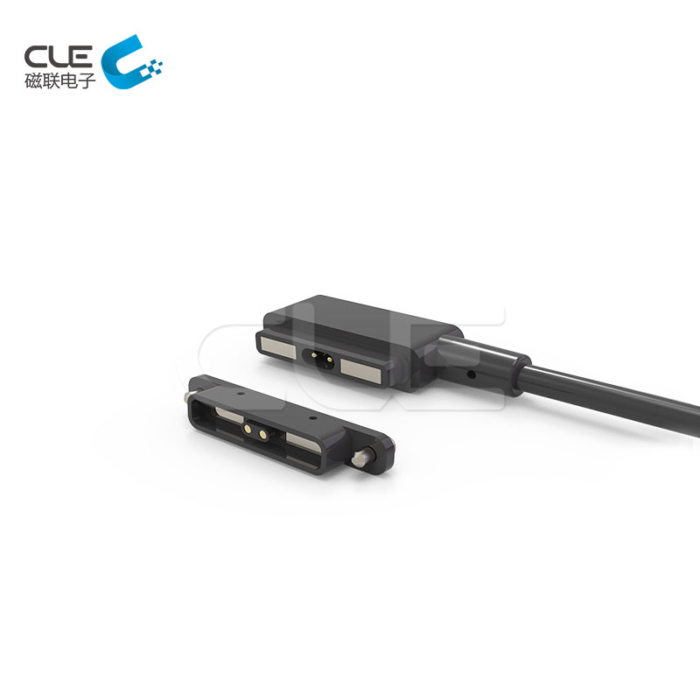

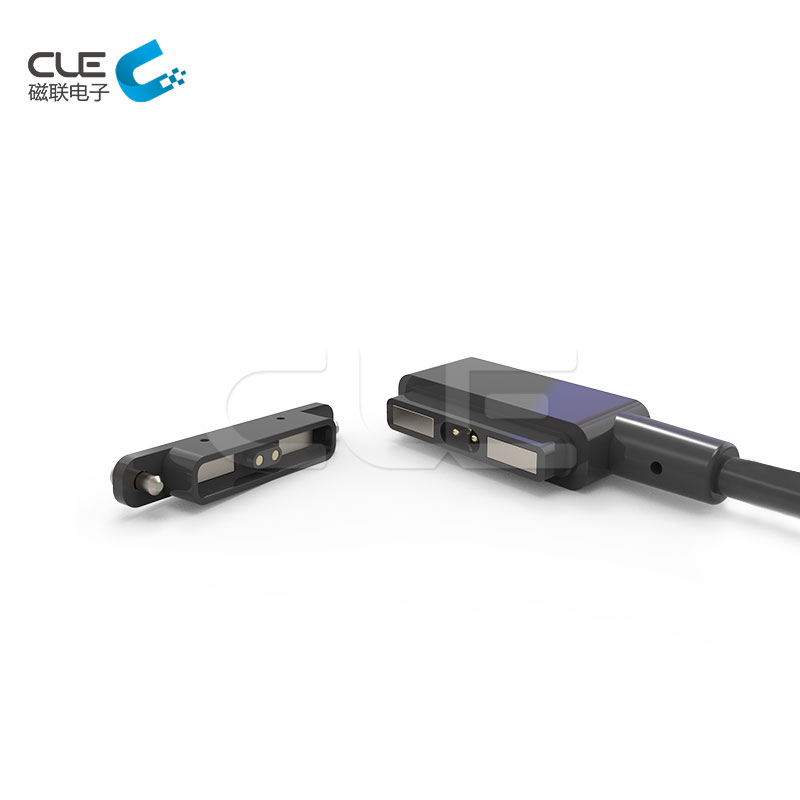

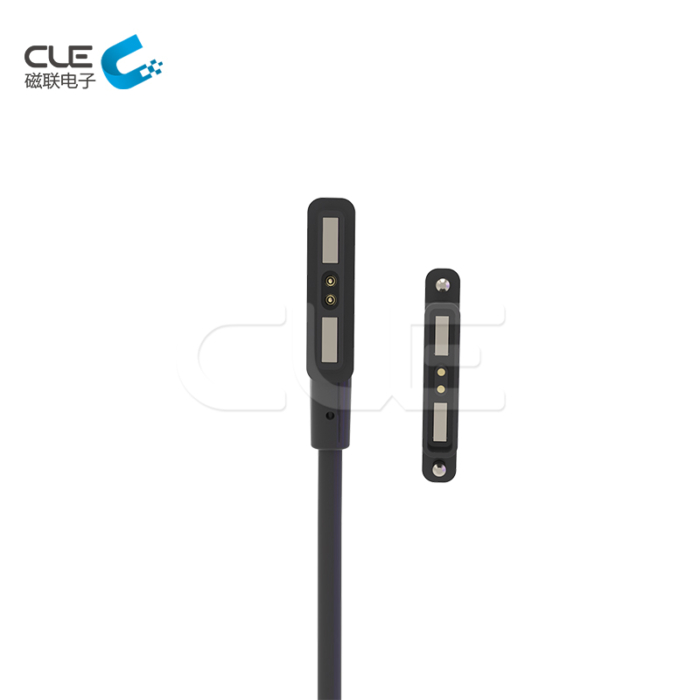

[CM-BP70101-02] 2Pin magnetic connector for electronic locks

Home » Products » [CM-BP70101-02] 2Pin magnetic connector for electronic locks

[CM-BP70101-02] 2Pin magnetic connector for electronic locks

  • P/N:CM-BP70101-02
  • Magnetic force 10N (horizontal position connection)
  • Rated voltage&current: 12V,2~3A
  • Life test: 50,000 cycles,long life
  • Environment: anti-corrosion,48 hours salt-spray test
Inquiry Now

Description

2 Pin magnetic connector for electronic locks,The packing line length probably has 840 mm,CLE standard 2Pin magnetic connector products.Each magnetic cable connector is individually inspected and tested, and certified to meet our rigid standards.

Female Part- – –Specification of  2Pin magnetic connector for electronic locks

2Pin magnetic connector for electronic locks

Products 2Pin magnetic connector for electronic locks
 Model No. M-BP70901-02
Voltage & Current 12 V,3 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Electronic locks
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of 4Pin male and female magnetic usb cable charger connector

2Pin magnetic connector for electronic locks

Products 2Pin magnetic connector for electronic locks
Model No. CM-BP70101-02
Voltage & Current 12V, 2 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Electronic locks
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
