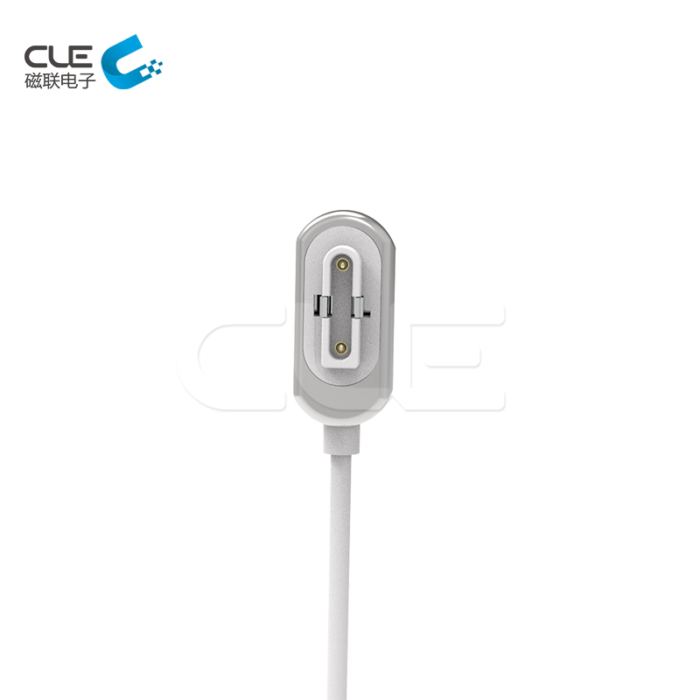

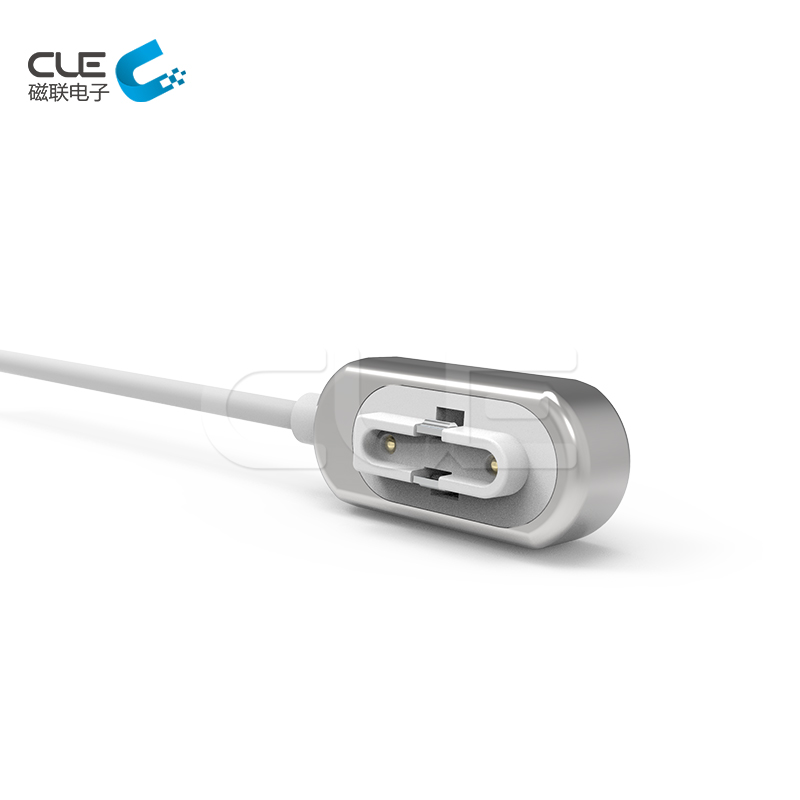

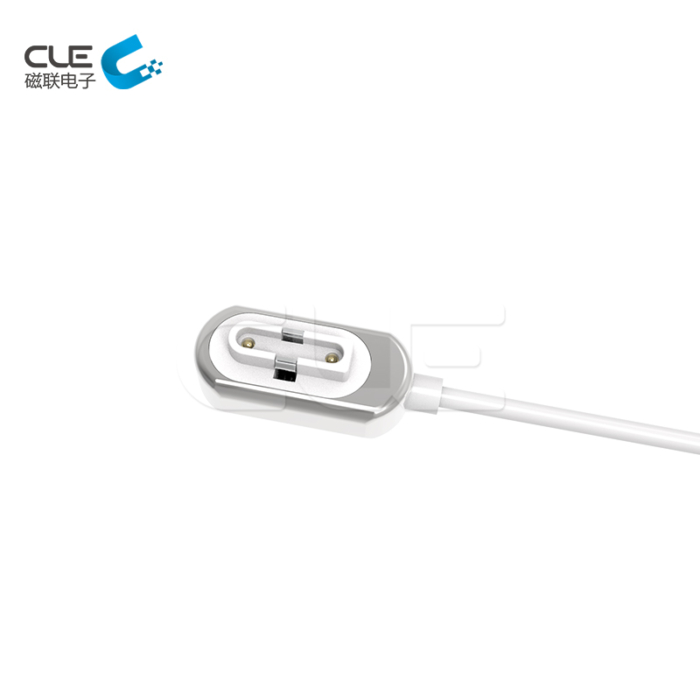

[CMA-0021] 2 Pin magnetic pogo pin connector with usb cable

[CMA-0021] 2 Pin magnetic pogo pin connector with usb cable

  • P/N: CMA-0021
  • Magnetic force: 2 N
  • Life test: 20,000 cycles
  • Rated Voltage&Current: DC 12 V ,1 A
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
  • Convenient connection for automatic adsorption

Description

2 pin magnetic pogo pin connector with usb cable. CLE magnetic pogo pin connector break the law of traditional charging cable , on longer need to find the direction of forced docking and the advantageous of personality products and automatic adsorption. CLE magnetic pogo pin connector provide a reliable electrical connection in the most rigorous environments, not easy to corrode.

2Pin magnetic pogo pin connector with usb cable

Male Part- – –Specification of  2Pin magnetic pogo pin connector with usb cable



Products 2Pin magnetic pogo pin connector with usb cable
Model No. CMA-0021
Voltage & Current 12 V, 1 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Smart watch
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
