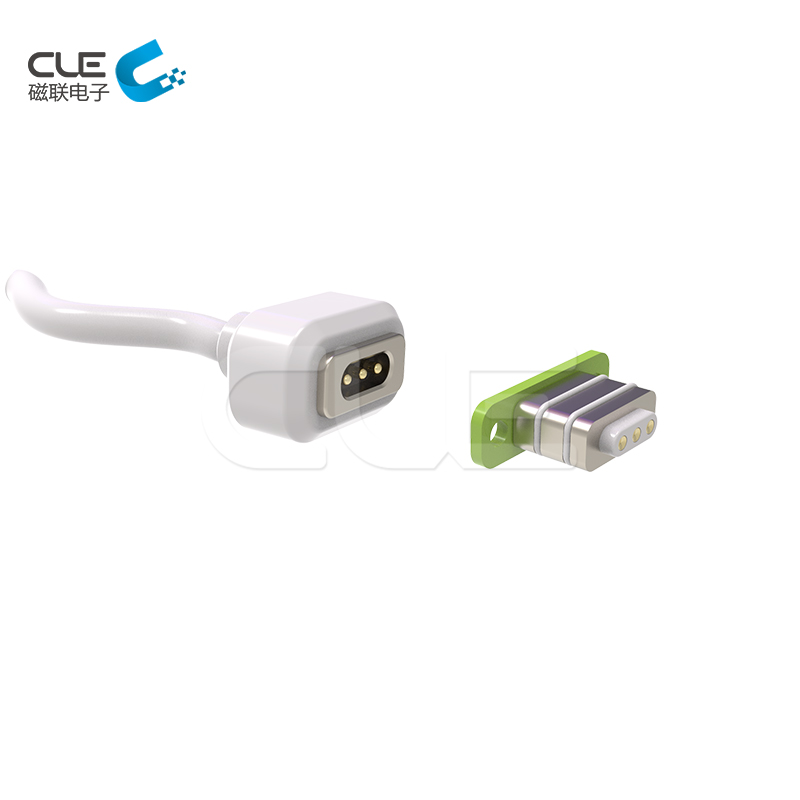

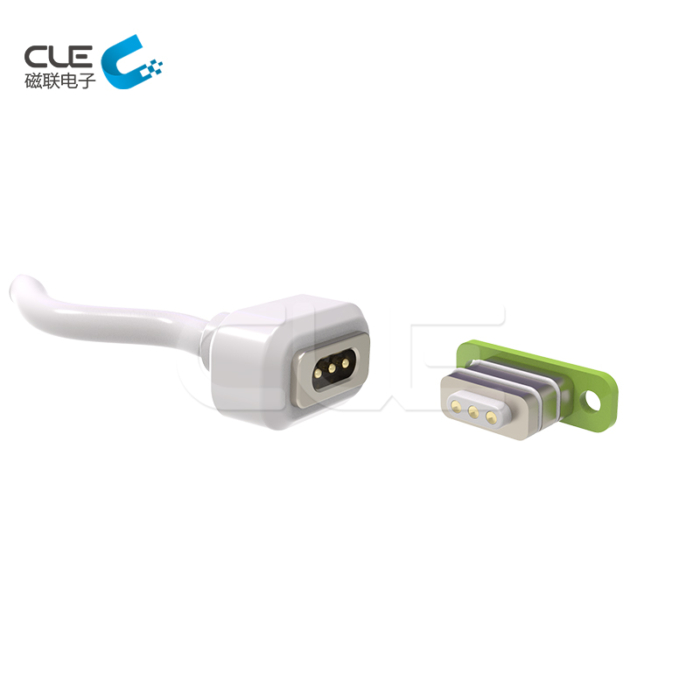

[CM-BP54611] 3Pin magnetic cable usb connector for vibrator

  • P/N:CM-BP4611
  • Magnetic force: 1.5N
  • Rated Voltage&Current: DC12V, 1A
  • Life test: 50,000 cycles ,good quality and long service life
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

3Pin magnetic cable usb connector for vibrator,CLE creates a new way for this field,it escapes the traditional way of connecting to give people a distinctive experience.Considering that this is a very small instrument,we designed it as long and wide in size 8.20mm and 13.40mm. Not only in this field,CLE can also provides you any solutions,such as robot field,smart running shoes field,etc.

Female Part- – –Specification of  3Pin magnetic cable usb connector for vibrator

Products 3Pin magnetic cable usb connector for vibrator
 Model No. M-BP54601
Voltage & Current 12 V, 2 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application  vibrator
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of  3Pin magnetic cable usb connector for vibrator

3Pin magnetic cable usb connector for vibrator



Products 3Pin magnetic cable usb connector for vibrator
Model No. CM-BP54611
Voltage & Current 12V, 1 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application  vibrator
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
