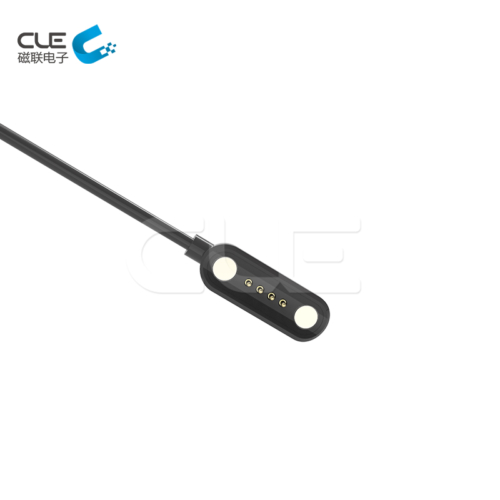

[CM-BP23911] 4 Pin magnetic connector cable power supply

  • P/N:CM-BP23911
  • Magnetic force: 1N
  • Rated Voltage&Current: DC12V,1A
  • Life test: 20,000 cycles,Long life
  • Environment:anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

4 Pin magnetic connector cable power supply,CLE magnetic connector and magnetic cable connector applied  diffierent to fields such as communication devices, medical devices,automotive, aerospace devices and so on. The magnetic connector is generally applied  in the electronics products such as smart watch .

Male Part- – –Specification of 4 Pin magnetic connector cable power supply

Products 4 Pin magnetic connector cable power supply
Model No. CM-BP23911
Voltage & Current 12V, 1 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Smart watch
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
