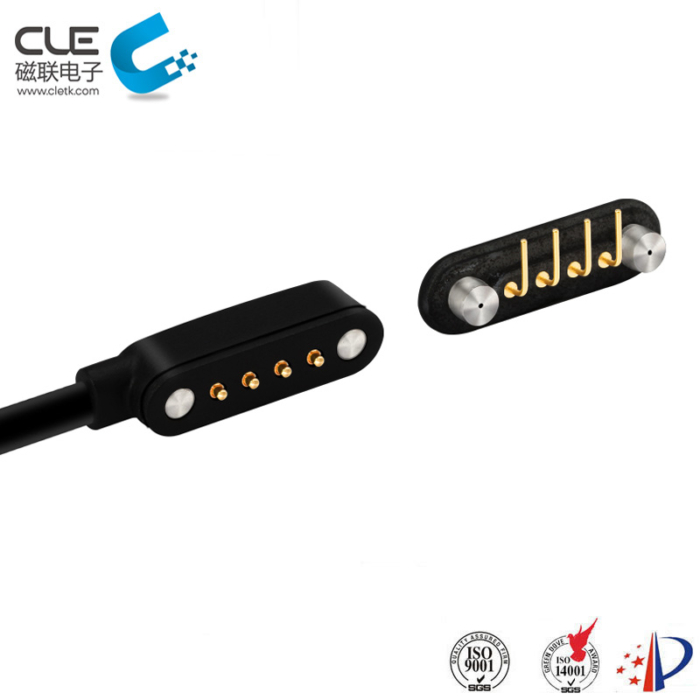

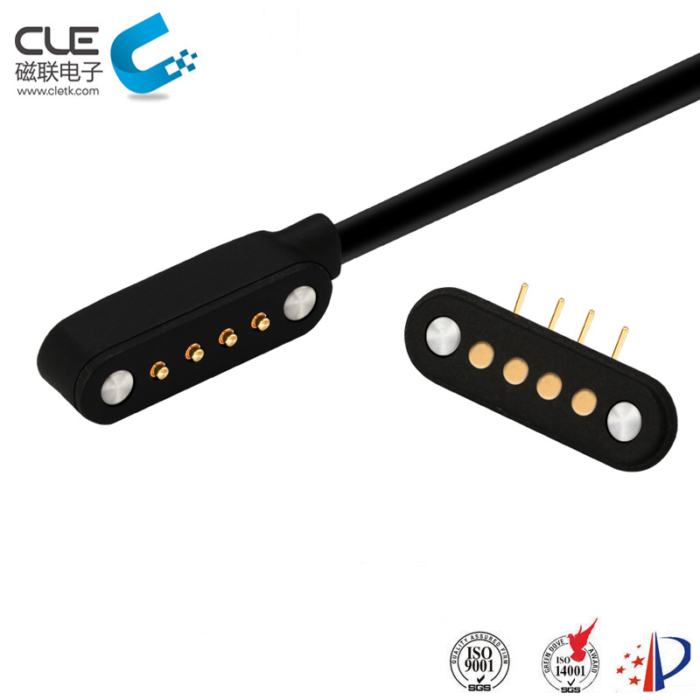

[CM-BP110411] 4 Pin male and female magnetic charging cable connector for smart wear

  • P/N:CM-BP110411
  • Magnetic force: 3.5 N,support upgrade
  • Rated Voltage&Current: 5 V,1 A, faster recharge
  • Life test: 20,000 cycles,100% open & short test
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

4 Pin male and female magnetic charging cable connector for smart wear,CLE is a professional manufacturer of high quality magnetic connector and magnetic cable connector.we have a professional R&D team.The magnetic charging cable connector have the advantage of automatic adsorption,fast and efficient charging,besides the pogo pins have a good electric conductivity,not easily corroded in a severe environment.

Female Part- – –Specification of  4 Pin male and female magnetic charging cable connector for smart wear

4 Pin male and female magnetic charging cable connector for smart wear

Products 4 Pin male and female magnetic charging cable connector for smart wear
 Model No. M-BP110421
Voltage & Current 12 V, 1 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Smart wear
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

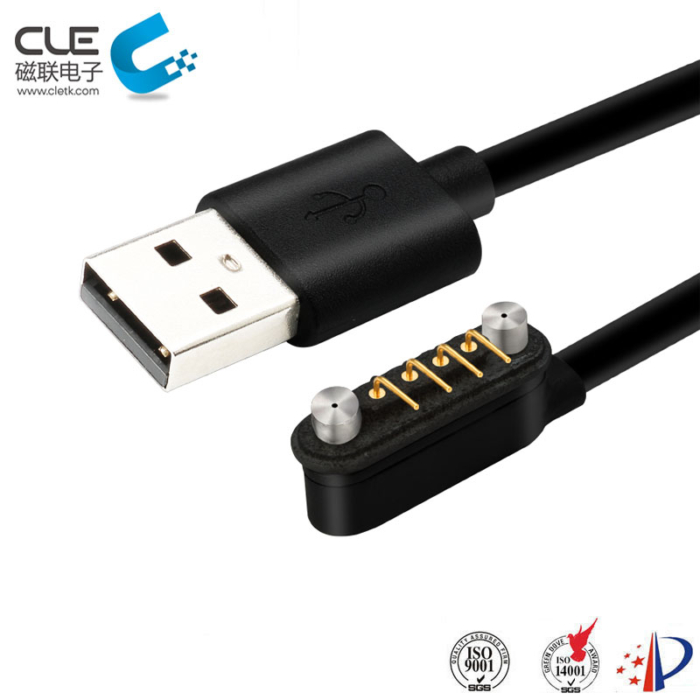

Male Part- – –Specification of  4 Pin male and female magnetic charging cable connector for smart wear

4 Pin male and female magnetic charging cable connector for smart wear

Products 4 Pin male and female magnetic charging cable connector for smart wear
Model No. CM-BP110411
Voltage & Current 5 V, 1 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Smart wear
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
