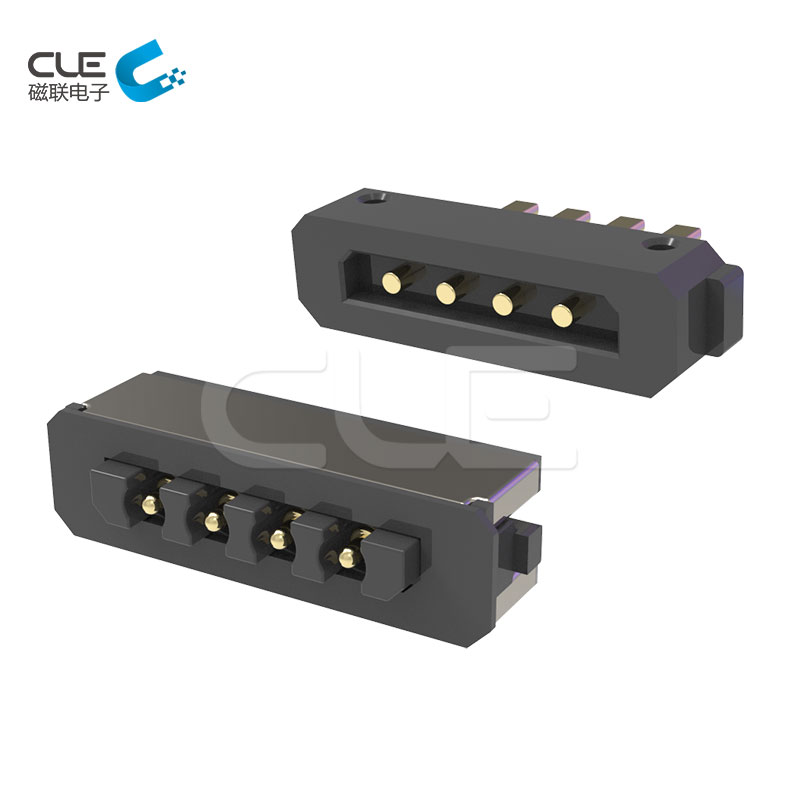

[M-BP27002] 4 Pin waterproof electrical connectors

    • P/N: M-BP27002
    • Magnetic force: 8 N(horizontal position connection)
    • Voltage&Current: 12 V, 1 A
    • Magnet: NdFeB never degaussing (except high temperature、broken、same pole connection)
    • Pass Rohs, reach, HF, environmental protect



Inquiry Now

Description

4 Pin waterproof electrical connectors,6 years of painstaking research on market products,The products can achieve excellent waterproof design, the host female can achieve dust-proof and waterproof (IPX8). CLE 4 pin waterproof electrical connectors have update waterproof rate.our engineers will design of magnetic connector according to customers requirements.

Female Part- – –Specification of 4 Pin waterproof electrical connectors

4 Pin waterproof electrical connectors

Products 4 Pin waterproof electrical connectors
 Model No. M-BP27002
Voltage & Current  12 V,1 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Bluetooth speaker
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of 4 Pin waterproof electrical connectors

 4 Pin waterproof electrical connectors

Products 4 Pin waterproof electrical connectors
Model No. M-BP27031
Voltage & Current 12 V, 1 A
Magnetic Shape Round , flat
Material PVC, TPE, Silica gel
Environment Anti-corrosion,48 hours salt-spray test
Certification RoHs, Reach, HF
Application Bluetooth speaker
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection

CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
