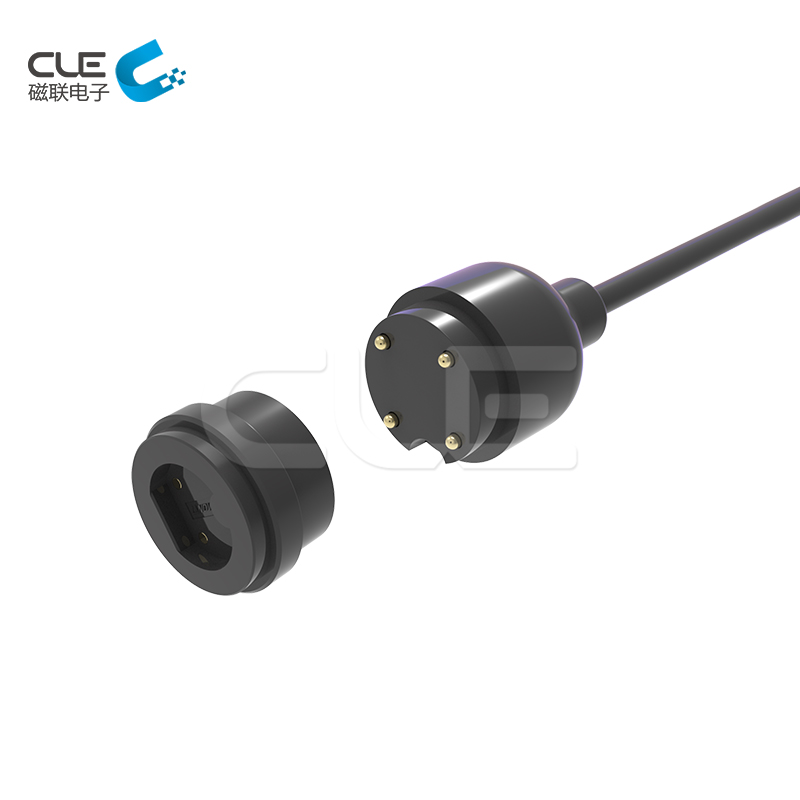

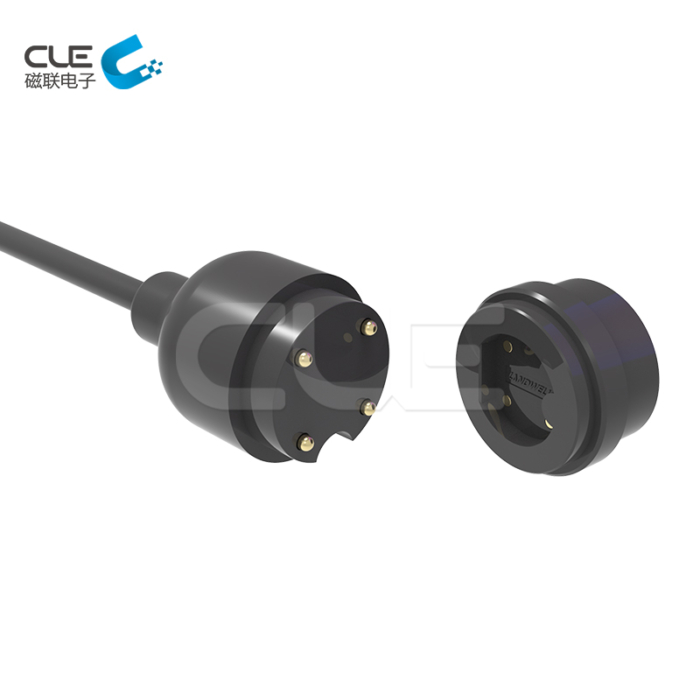

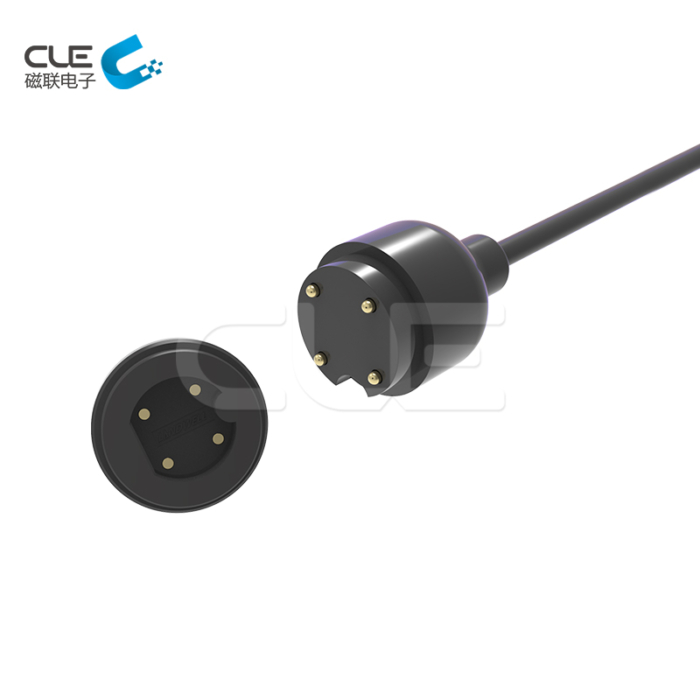

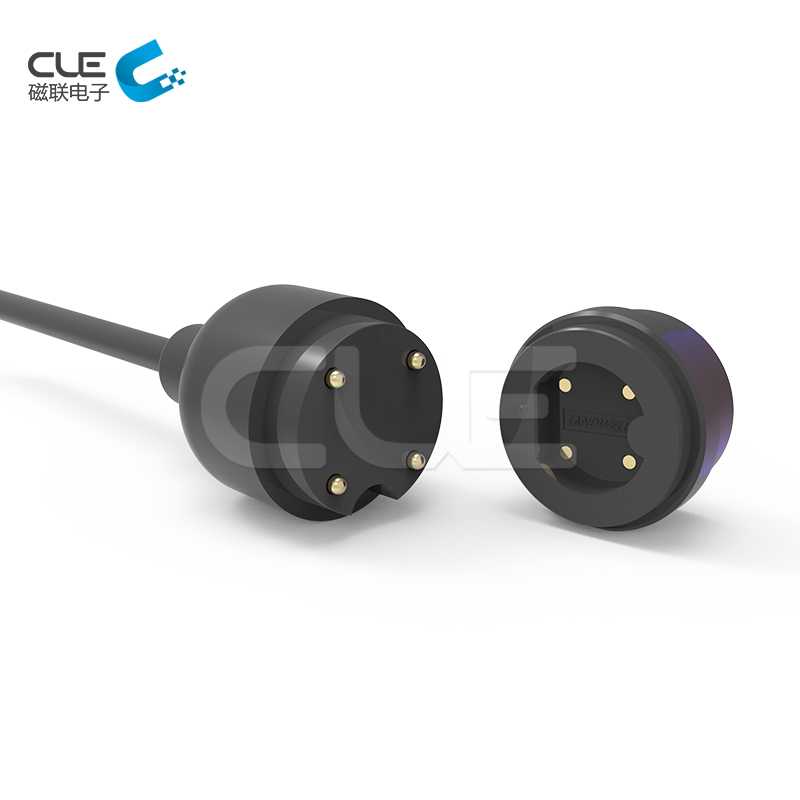

[CM-BP42611 ] 4Pin magnetic cable connectors for charging

  • P/N:CM-BP42611
  • Magnetic force: 6 N (horizontal position connection)
  • Voltage and Current: 12 V,2 A, faster recharge
  • Life Test: 20000 cycles
  • Environmental protection material, no pollution
Inquiry Now

Description

4 Pin magnetic cable connector for charging,it can pass Rate Voltage&Current 12V,5A,faster recharge,with less operating time.With 6 years of manufacturing experience along with excellent quality, advanced services form CLE.

Female Part- – –Specification of 4Pin magnetic cable connector for charging

  4Pin magnetic cable connectors for charging

Products 4Pin magnetic cable connector for charging
 Model No. M-BP42601
Voltage & Current  12 V,3 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Eletronic product
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of 4Pin magnetic cable connector for charging

4Pin magnetic cable connectors for charging

Products 4Pin magnetic cable connector for charging
Model No. CM-BP42611
Voltage & Current 12 V,2 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Eletronic product
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
