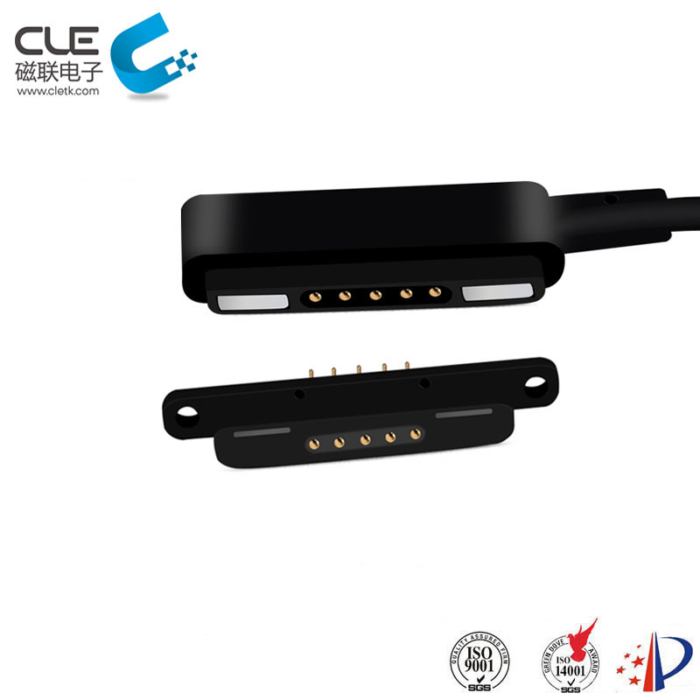

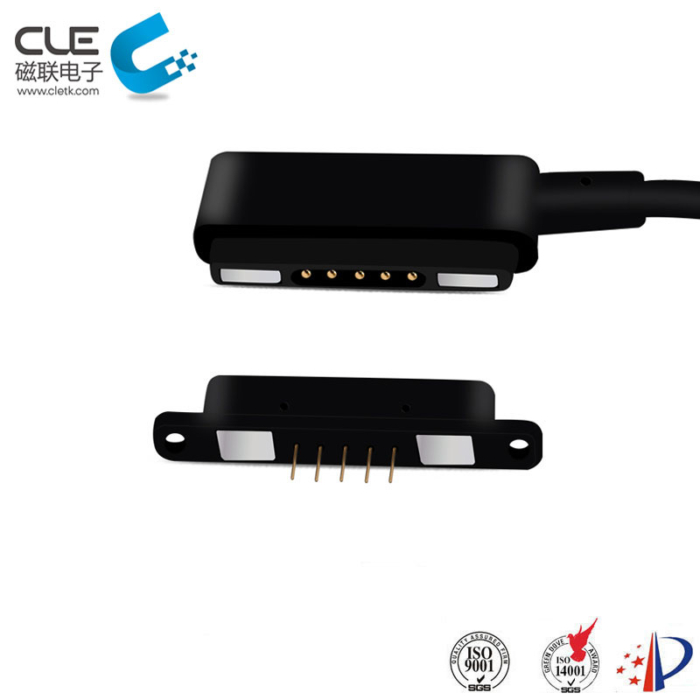

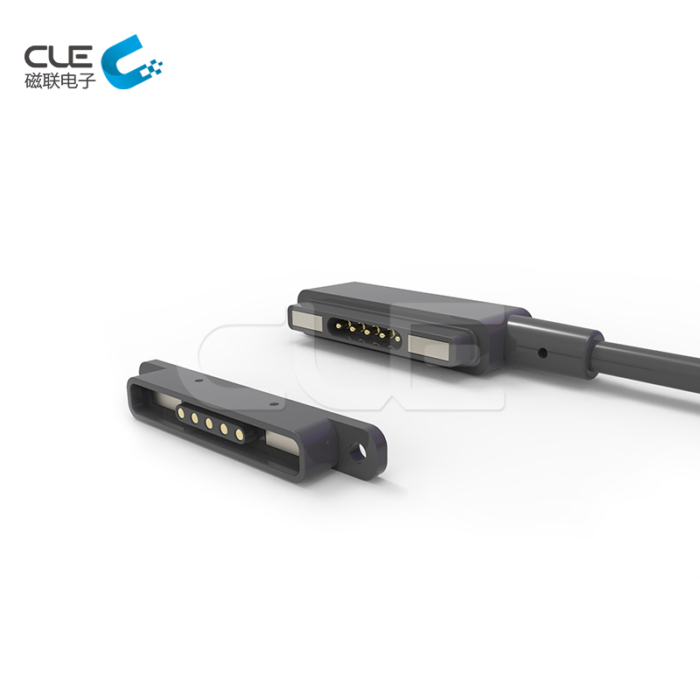

[CM-BP70101-05] 5 Pin male and female smart charging cable

  • P/N:CM-BP70101-05
  • Magnetic force: 4.5N (horizontal position connection)
  • Rated Voltage&Current: DC 12 V,2~3 A ,charging fast
  • Life test: 50,000 cycles,Long life, high quality
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

5 Pin male and female smart charging cable ,CLE Professional customized,the barrel and plunger plating 5um Au,50~100u Ni.The product pogo pin plating 0.125um Au, increase electric conductivity and the magnet use NdFeB material, it’s can keep the magnetic force forever.

Female Part- – –Specification of  5 Pin male and female smart charging cable

5 Pin male and female smart charging cable

Products 5 Pin male and female smart charging cable
 Model No. M-BP70902-05
Voltage & Current  12 V, 3A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Remote control
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of  5 Pin male and female smart charging cable

5 Pin male and female smart charging cable

Products 5 Pin male and female smart charging cable
Model No. CM-BP70101-05
Voltage & Current 12 V,2 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Remote control
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
