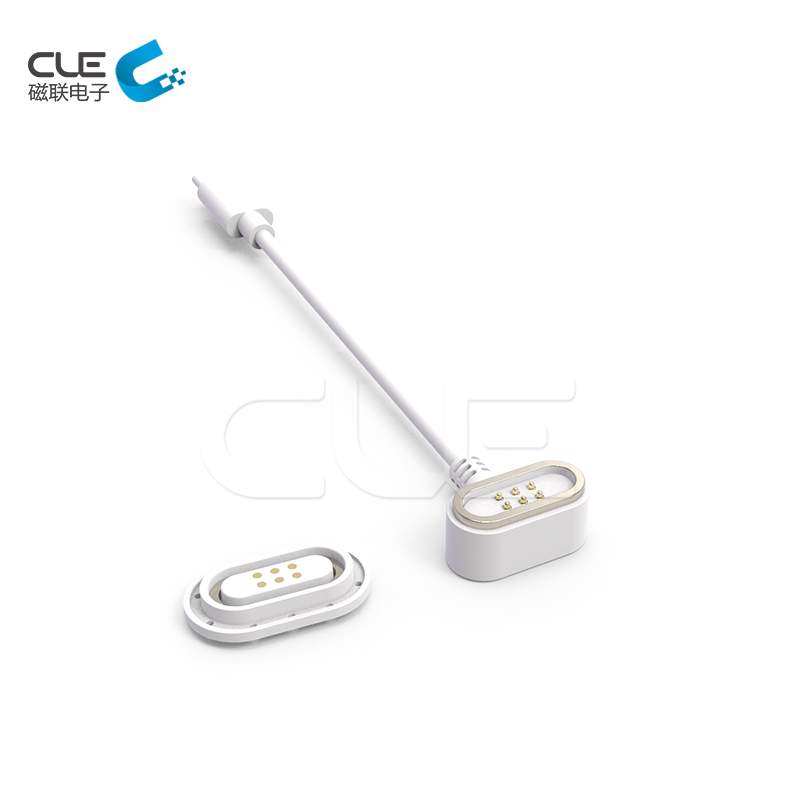

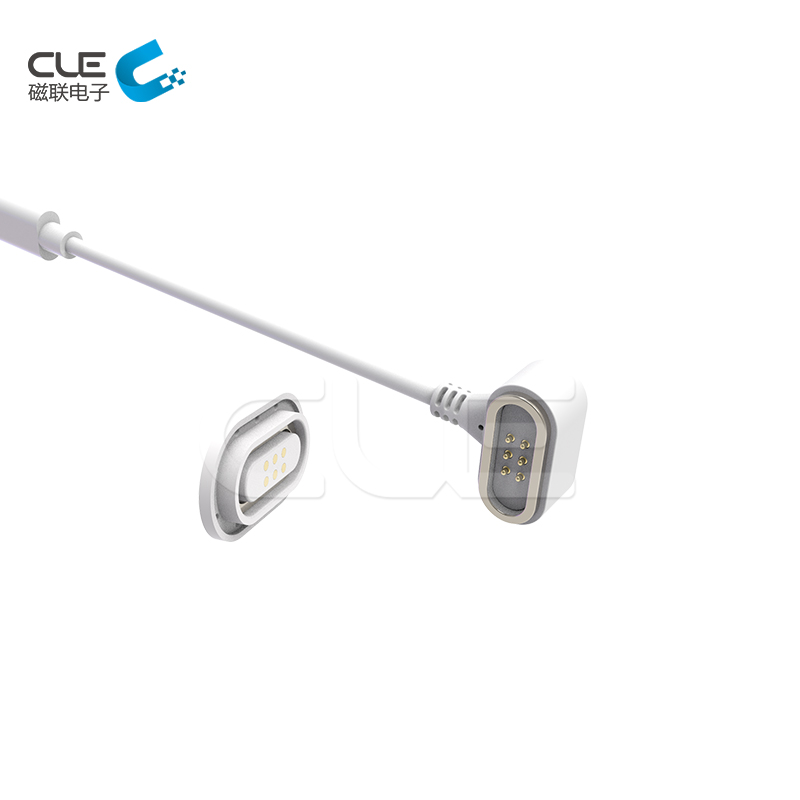

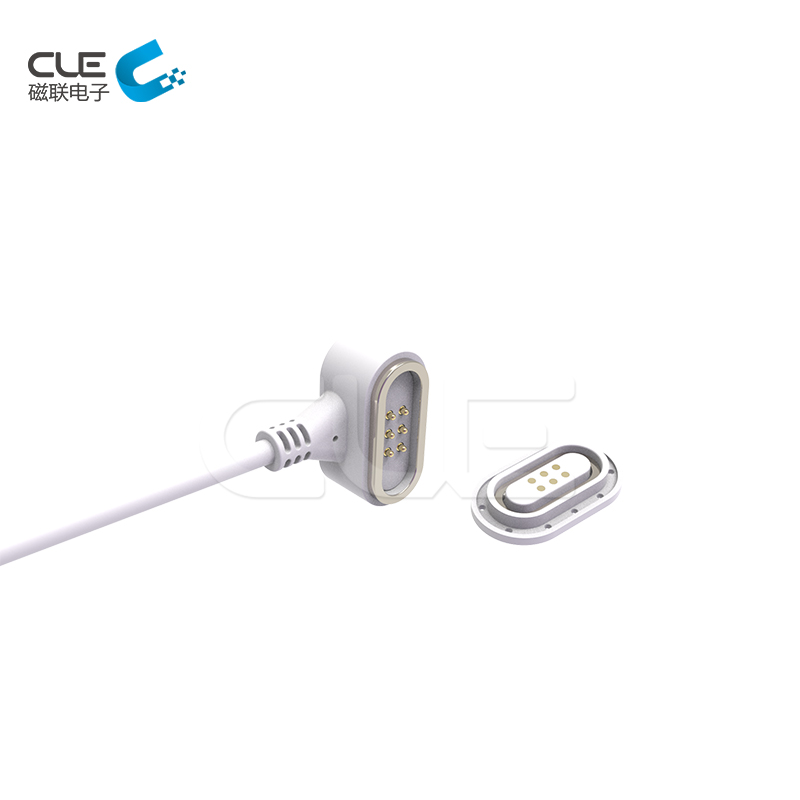

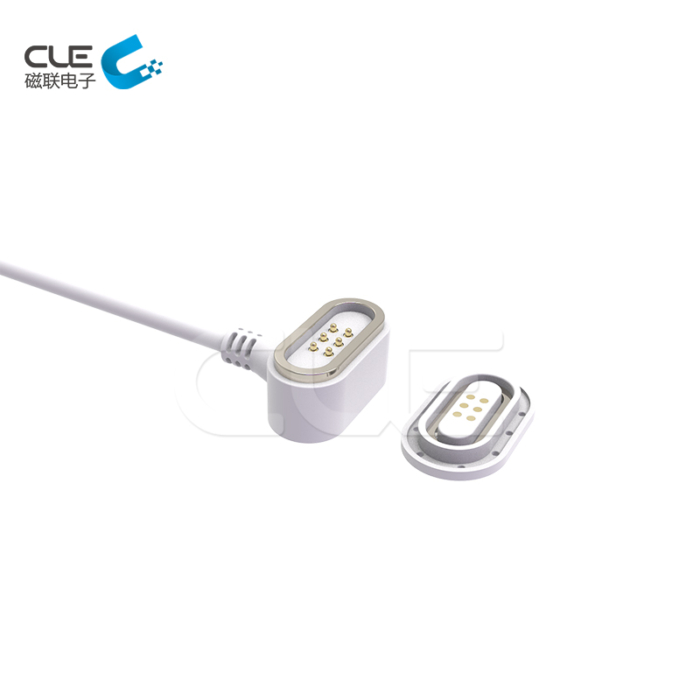

[CXA-0237] Custom DC 6 pin magnetic power cable connector for medical equipment

[CXA-0237] Custom DC 6 pin magnetic power cable connector for medical equipment

  • P/N: CXA-0237
  • Magnetic force: 0.69 N,support upgrade
  • Rated Voltage&Current: 20 V, 2 A, faster recharge
  • Life test: 50,000 cycles,100% open & short test
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

Custom DC 6 pin magnetic power cable connector for medical equipment ,CLE focus on research development magnetic connector and magnetic cable connector and have over 6 years about magnetic products of experience.Magnetic products as innovation of science and technology,it will replace the tradition connectors and become an expression of human progress.

Female Part- – –Specification of Custom DC 6 pin magnetic power cable connector for medical equipment

Custom DC 6 pin magnetic power cable connector for medical equipment

Products Custom DC 6 pin magnetic power cable connector for medical equipment
 Model No. 0000154
Voltage & Current 20V, 2 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Medical equipment
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of Custom DC 6 pin magnetic power cable connector for medical equipment



Custom DC 6 pin magnetic power cable connector for medical equipment

Products Custom DC 6 pin magnetic power cable connector for medical equipment
Model No. CMA-0237
Voltage & Current 20 V, 2A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Medical equipment
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .



CLE Strength

Quality First

a. The establishment of CNAS laboratory system provides comprehensive testing standards and the testing functions;

b. The operation of the nine systems is the guarantee of the quality level.

Cutting-edge Research

a. CLE has a strong research and development team to provide customized solutions;

b. Owns a number of invention patent technology and simulation analysis ability;

Quick Response

a. CLE global offices provide timely technical support for global customers.

b. Vertical integrated production system ensures timely delivery;

Intelligent Factory

a. Production automation, testing automation equipment development and introduction;

b. Intelligent system construction to maximize the realization of intelligent information;

Plating Technology

a. CLE has more than 20 years of experience in electroplating engineers,

b. Core electroplating technology factory is registered;



ABOUT US

Dongguan CLE Technology Co.,Ltd is a subsidiary of CFE Corporation Co.,Ltd. Focus on research and development, manufacturing, sales: precision magnetic connector, precision magnetic charging cable connector, to provide customers with magnetic solutions .

With the prospect of magnetic products and the development of market potential, as well in order to better and faster into the market with more focused, professional, concentrate on development of magnetic products, CFE Corporation Co,Ltd., has separated the magnetic connector product line and set up CLE Technology Co.,Ltd  as independent
