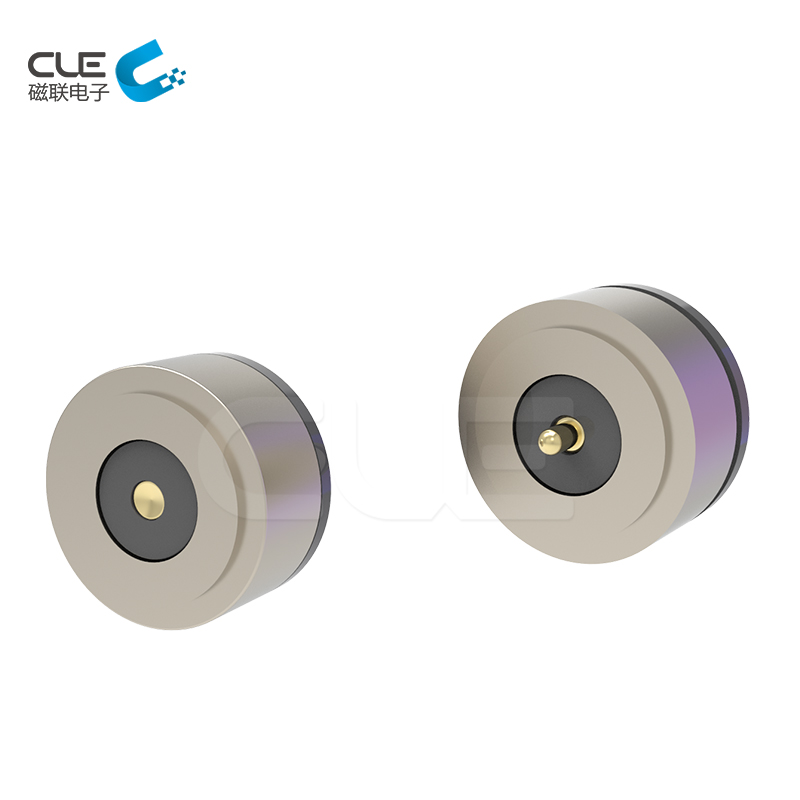

[M-BP14211] Customized magnetic connector with LED

  • P/N:M-BP14211
  • Magnetic force: 3 N (horizontal position connection)
  • Rate Voltage&Current: DC 12 V, 5 A
  • Waterproof: IP 68
  • Pass Rohs, reach, HF, environmental protection
  • Drop automatically disconnect, protect your device
Inquiry Now

Description

Customized magnetic connector with LED,application field is very extensive,it can also be used in flashlights, hand controlled modular robotic kit, headphones and so on. CLE professional design waterproof magnetic connector ,it have excellent electrical conductivity, not easy to corrode .

Male Part- – –Specification of Customized magnetic connector with LED

Customized magnetic connector with LED

Products Customized magnetic connector with LED
 Model No. M-BP14211
Voltage & Current  12 V,5 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application LED、Headphone、Electronic locks
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Female Part- – –Specification of Customized magnetic connector with LED

Customized magnetic connector with LED

Products Customized magnetic connector with LED
Model No. M-BP14202
Voltage & Current 24 V,5 A
Magnetic Shape Round , flat
Material PVC, TPE, Silica gel
Environment Anti-corrosion,48 hours salt-spray test
Certification RoHs, Reach, HF
Application LED、Headphone、Electronic locks
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
