[CXA-0080] Customized tablet computer male and female magnetic usb charging cable

Home » Products » [CXA-0080] Customized tablet computer male and female magnetic usb charging cable

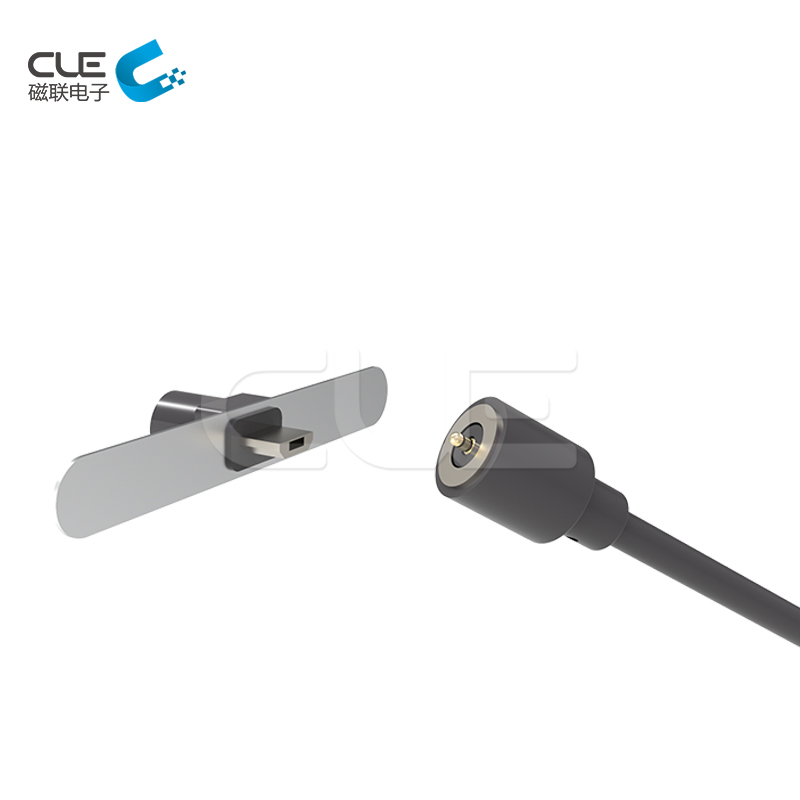

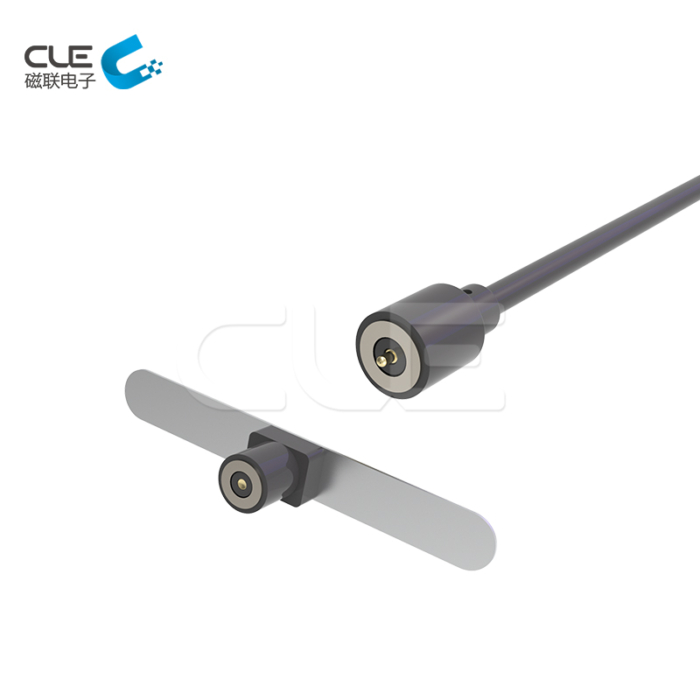

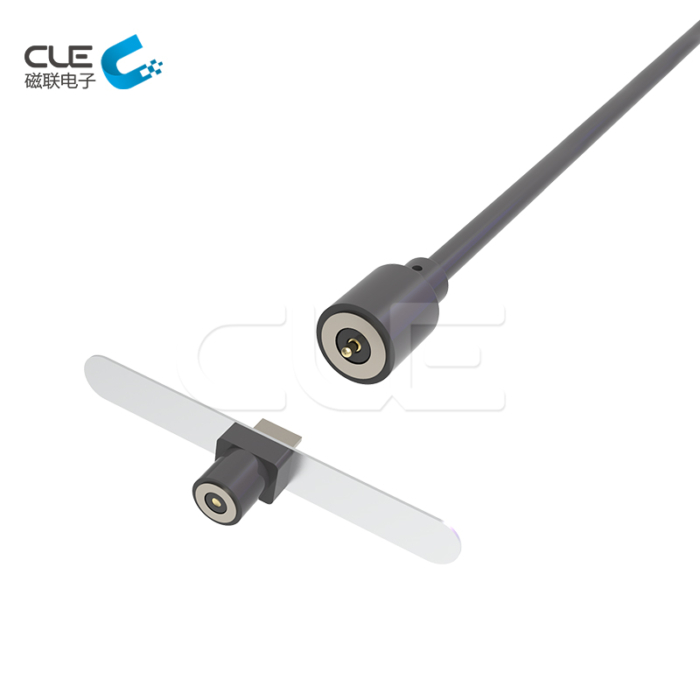

[CXA-0080] Customized tablet computer male and female magnetic usb charging cable

  • P/N: CXA-0080
  • Magnetic force: 5 N
  • Rated Voltage&Current: 24V,5A,faster recharge,to
    solved the problem of fast charge
  • Life test: 100,000 cycles,long life,high quality
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

Customized tablet computer male and female magnetic usb charging cable,magnetic connector manufacturer in China, CLE offer a range of magnetic usb cable connector for charging.our engineers independently design and develop capability and can customize the products development,Our magnetic products are designed to be stylish and impactful.

Female Part- – –Specification of  Customized tablet computer male and female magnetic usb charging cable

Customized tablet computer male and female magnetic usb charging cable

Products Customized tablet computer male and female magnetic usb charging cable
 Model No. MMA-0063
Voltage & Current 24 V, 5 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Tablet computer
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of Customized tablet computer male and female magnetic usb charging cable

Customized tablet computer male and female magnetic usb charging cable

Products Customized tablet computer male and female magnetic usb charging cable
Model No. CMA-0080
Voltage & Current 12 V, 5 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Tablet computer
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
