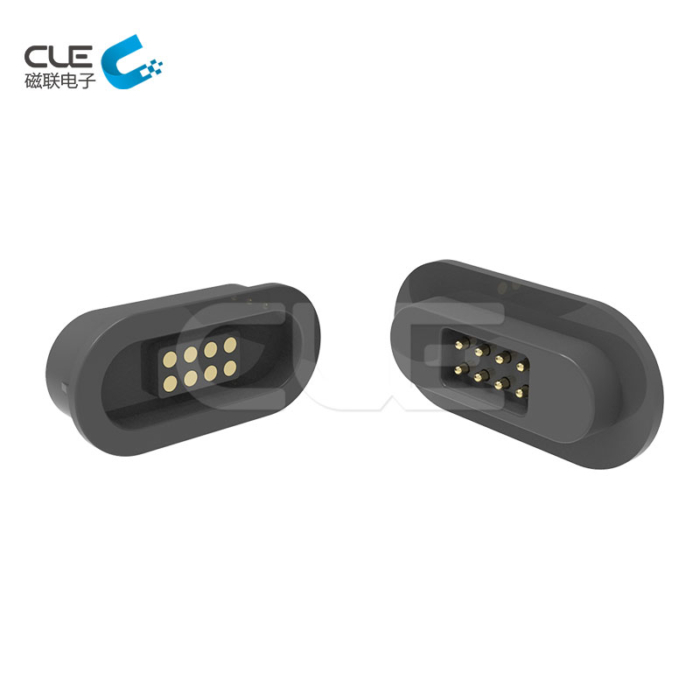

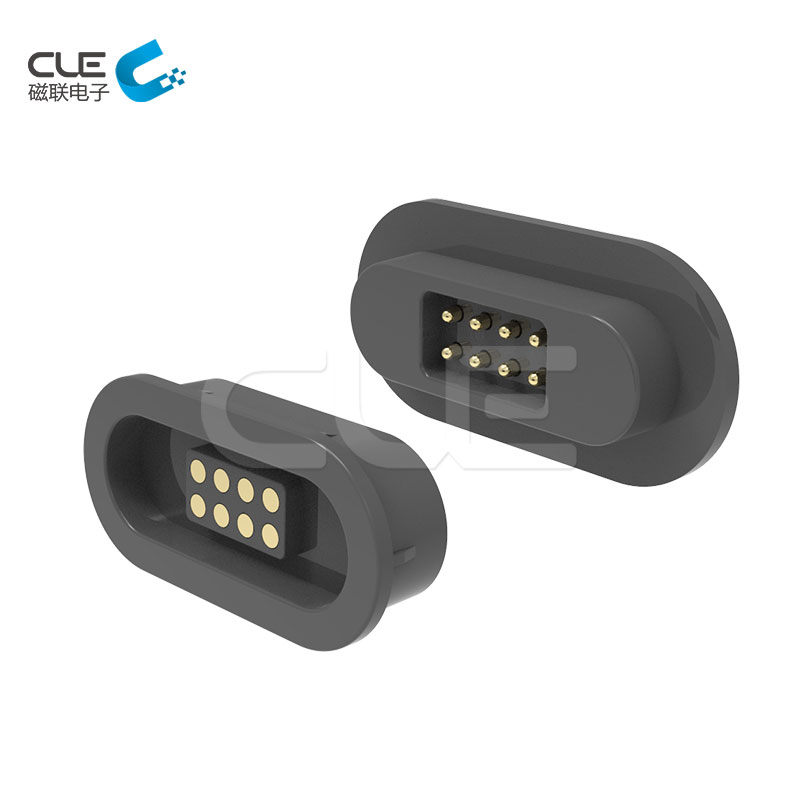

[MMA011201] High quality electrical 8pin magnetic power connector

  • P/N:MMA011201
  • Magnetic force: 1N
  • Rated Voltage&Current: DC12V,1A
  • Life test: 50,000 cycles
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

 High quality electrical 8pin magnetic power connector,CFE have over 6 years of magnetic connector and  a professional R&D team.our team focus on research and development for magnetic connector,the magnetic cable connector is quick charge  than the tradition,and can achieved  automatic adsorption,convenient connection.

Male Part- – –Specification of High quality electrical 8pin magnetic power connector

High quality electrical 8pin magnetic power connector

Products High quality electrical 8pin magnetic power connector
 Model No. MMA011201
Voltage & Current  12 V, 1 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Female Part- – –Specification of  High quality electrical 8pin magnetic power connector

High quality electrical 8pin magnetic power connector

Products High quality electrical 8pin magnetic power connector
Model No. MFA011222
Voltage & Current 12 V, 1 A
Magnetic Shape Round , flat
Material PVC, TPE, Silica gel
Environment Anti-corrosion,48 hours salt-spray test
Certification RoHs, Reach, HF
Application
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection

CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
