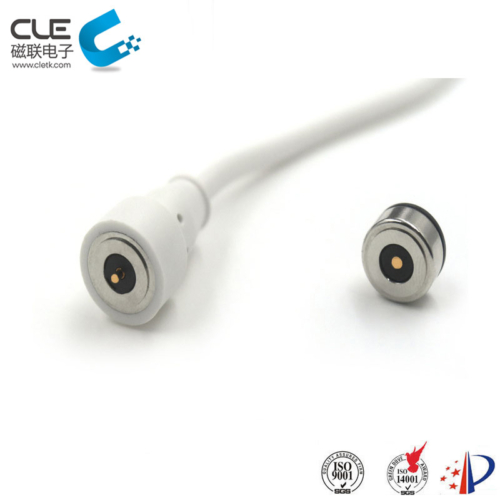

[CMA-012322] High quality magnetic pogo pin connector for LED strips

  • P/N:CMA-012322
  • Magnetic force: 3 N,support upgrade
  • Rated Voltage&Current: 12 V,3 A, faster recharge
  • Life test: 100,000 cycles,100% open & short test
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

High quality magnetic pogo pin connector for LED strips,magnetic pogo pin have the advantage of automatic adsorption,easy to operation. The pogo pin have a good electric conductivity,not easily corroded in a severe environment.

Female Part- – –Specification of  High quality magnetic pogo pin connector for LED strips

High quality magnetic pogo pin connector for  LED strips

Products High quality magnetic pogo pin connector for LED strips
 Model No. M-BP14202
Voltage & Current 24 V, 5 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application LED strips
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of  High quality magnetic pogo pin connector for LED strips

High quality magnetic pogo pin connector for  LED strips

Products High quality magnetic pogo pin connector for LED strips
Model No. CMA-012322
Voltage & Current 12 V, 3 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application LED strips
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
