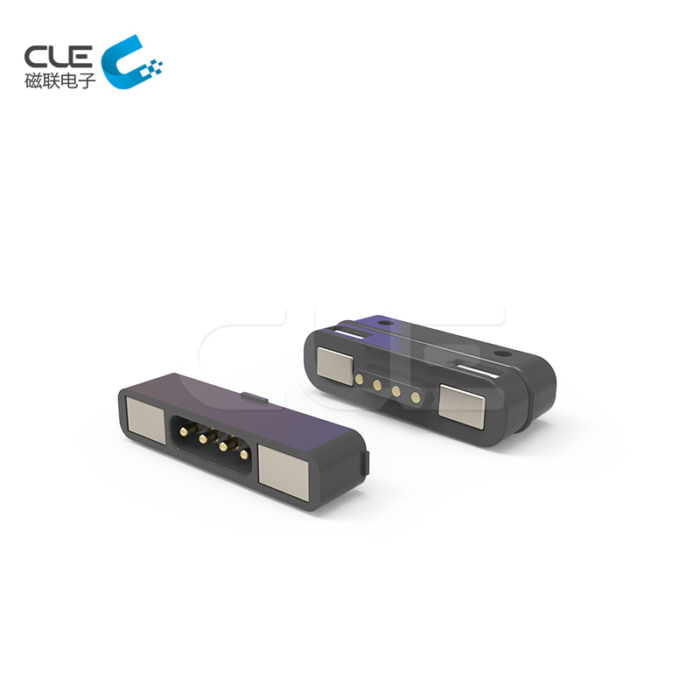

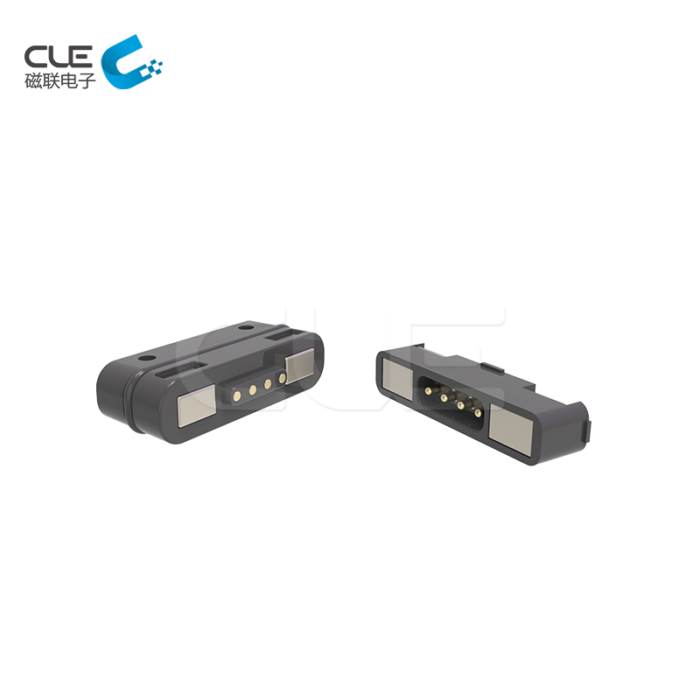

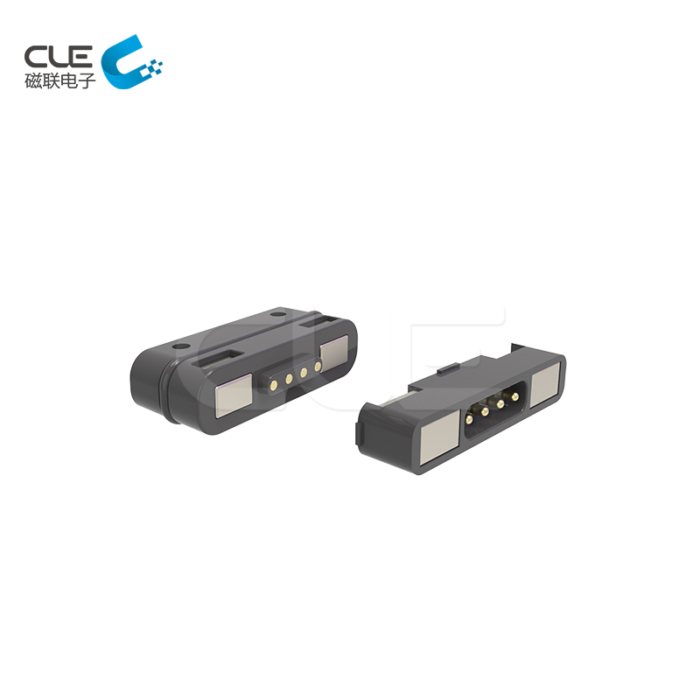

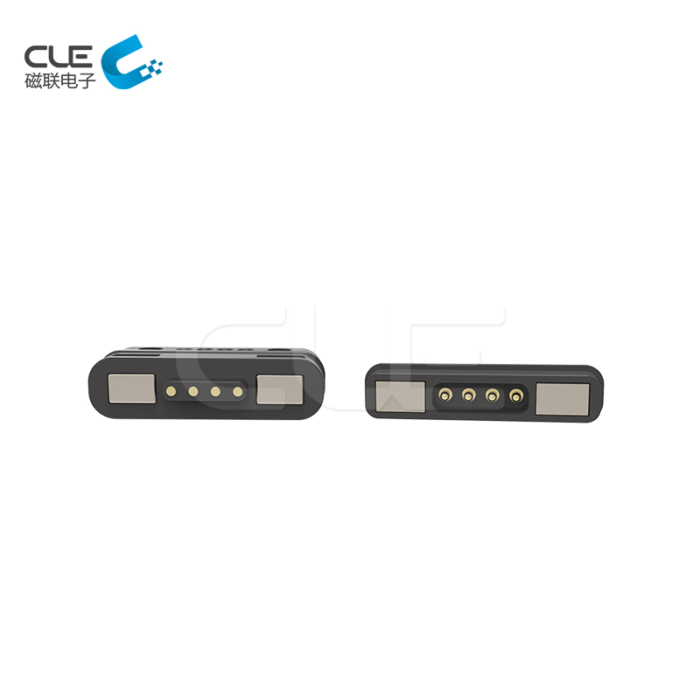

[M-BP63311] Magnetic electrical connector usb charging for medical equipment

  • P/N:M-BP63311
  • Magnetic force: 3 N
  • Rated Voltage&Current: DC 12 V , 2 A
  • Life test: 50,000 cycles
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

Magnetic electrical connector usb charging for medical equipment. CLE is professional manufacturer of global sales magnetic connector.We offer a range of magnetic products for customers.Our magnetic products are widely used smart home,LED industry,VR equipment,lighting,electric industry,medical industry and so on ,meet customers needs in different ares.The magnetic electrical connector can achieved automatic adsorption,easy to operation.

Male Part- – –Specification of  Magnetic electrical connector usb charging for medical equipment

Magnetic electrical connector usb charging for medical equipment

Products Magnetic electrical connector usb charging for medical equipment
 Model No. M-BP63311
Voltage & Current  12 V, 2 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Medical equipment
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Female Part- – –Specification of  Magnetic electrical connector usb charging for medical equipment

Magnetic electrical connector usb charging for medical equipment

Products Magnetic electrical connector usb charging for medical equipment
Model No. M-BP63321
Voltage & Current 12 V, 2 A
Magnetic Shape Round , flat
Material PVC, TPE, Silica gel
Environment Anti-corrosion,48 hours salt-spray test
Certification RoHs, Reach, HF
Application Medical equipment
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection

CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
