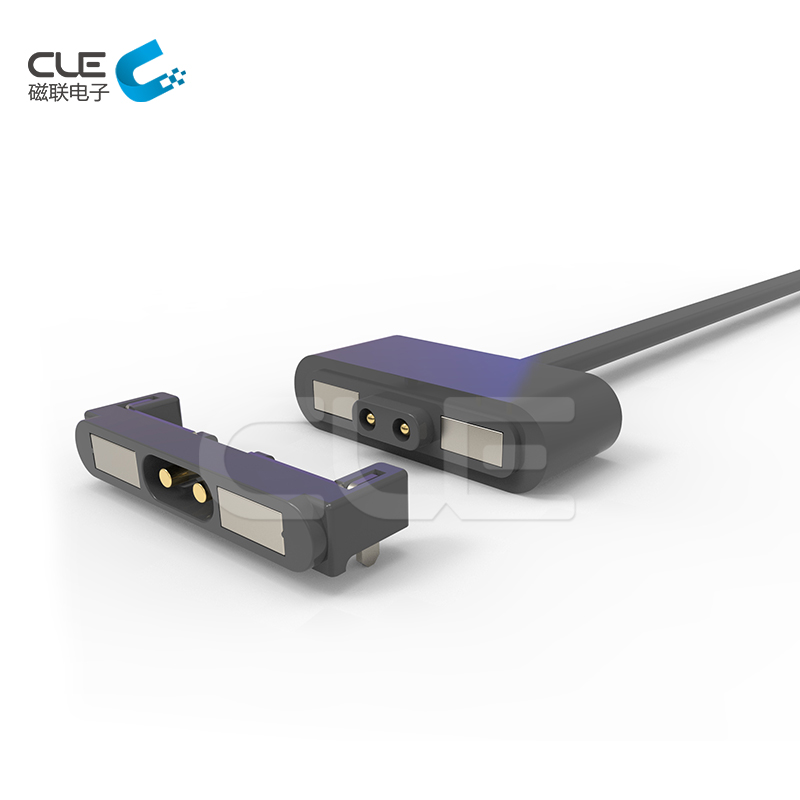

[MXA0011] Magnetic laptop charger cable connector with 2 pin

[MXA0011] Magnetic laptop charger cable connector with 2 pin

  • P/N:MXA0011
  • Magnetic force: 5 N
  • Rated Voltage&Current: 12V,1~2A,faster recharge,to
    solved the problem of fast charge
  • Life test: 20,000 cycles,long life,high quality
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection

Description

Magnetic laptop charger cable connector with 2 pin. We have a wide application of magnetic laptop,for example , notebook computers,computer mouse,Wireless ultrasonic diagnostic instrument, medical instrument and Portable speakers.  You can choose it according to the application. Automatic adsorption can quickly connect the product to the computer equipment,reduce operating time.

Female Part- – –Specification of  Magnetic laptop charger cable connector with 2 pin

Magnetic laptop charger cable connector with 2 pin

Products Magnetic laptop charger cable connector with 2 pin
 Model No. MFA0010
Voltage & Current 12 V, 2 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Notebook computers
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of  Magnetic laptop charger cable connector with 2 pin

Magnetic laptop charger cable connector with 2 pin

Products Magnetic laptop charger cable connector with 2 pin
Model No. CMA-0011
Voltage & Current 12 V, 1 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Notebook computers
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
