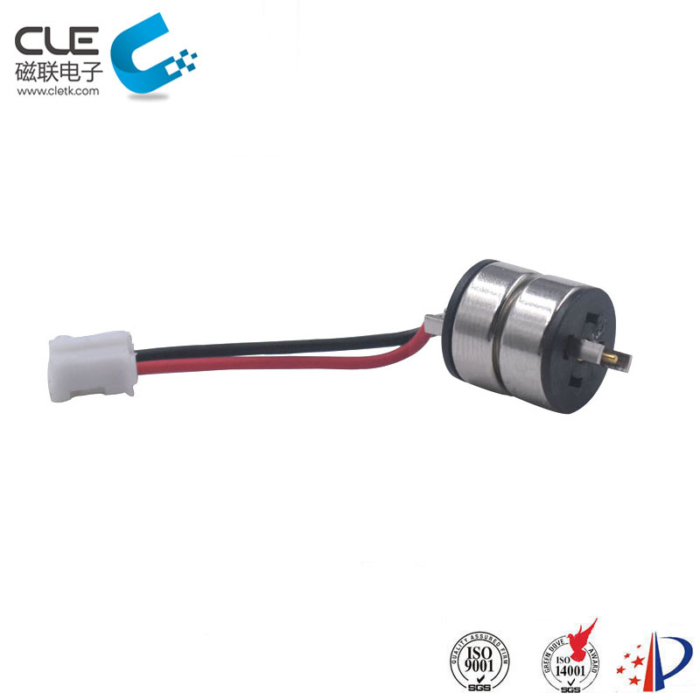

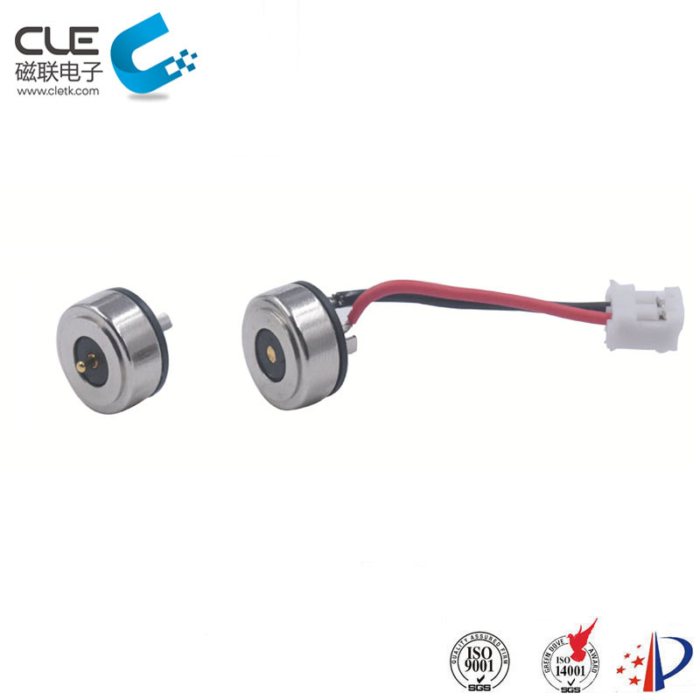

[M-BP14211] Male and female magnetic power connector suppliers

[M-BP14211] Male and female magnetic power connector suppliers

  • P/N:CM-BP71322
  • Magnetic force: 3 N
  • Voltage&Current: 12 V,5 A ,faster recharge,with less operating time
  • Life test: 20000 cycles
  • Convenient connection for automatic adsorption
  • Drop automatically disconnect, protect your device

Description

Male and female magnetic power connector suppliers,CLE have more than 50 kind of magnetic connector solutions with independent, we can also provide different inner structure with waterproof function and any technical supported.our magnetic products have long life cycles and it support 10,0000-20,0000 cycles reattachment life times.

Male Part- – –Specification of  Male and female magnetic power connector suppliers

Male and female magnetic power connector suppliers

Products Male and female magnetic power connector suppliers
 Model No. M-BP14211
Voltage & Current  12 V,5 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Female Part- – –Specification of Male and female magnetic power connector suppliers

Male and female magnetic power connector suppliers

Products Male and female magnetic power connector suppliers
Model No. CM-BP71322
Voltage & Current 12 V,2 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.



ABOUT US

Dongguan CLE Technology Co.,Ltd is a subsidiary of CFE Corporation Co.,Ltd. Focus on research and development, manufacturing, sales: precision magnetic connector, precision magnetic charging cable connector, to provide customers with magnetic solutions .

With the prospect of magnetic products and the development of market potential, as well in order to better and faster into the market with more focused, professional, concentrate on development of magnetic products, CFE Corporation Co,Ltd., has separated the magnetic connector product line and set up CLE Technology Co.,Ltd  as independent
