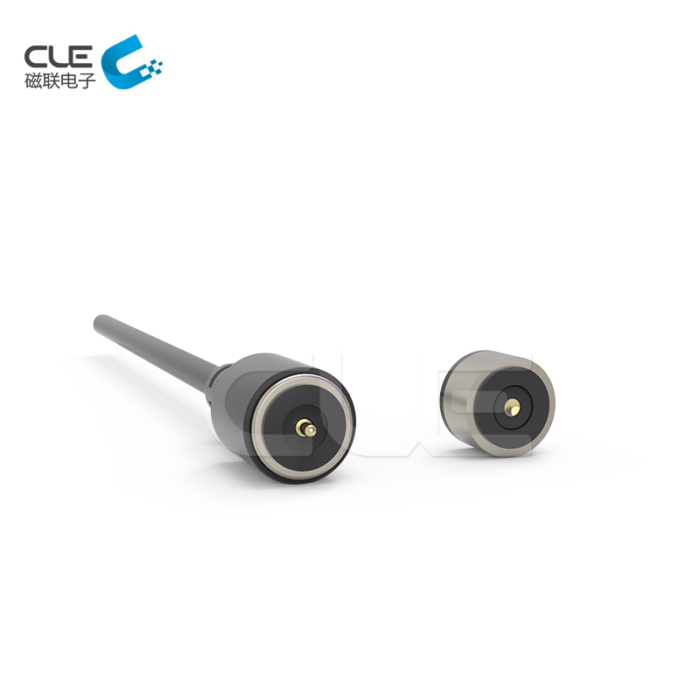

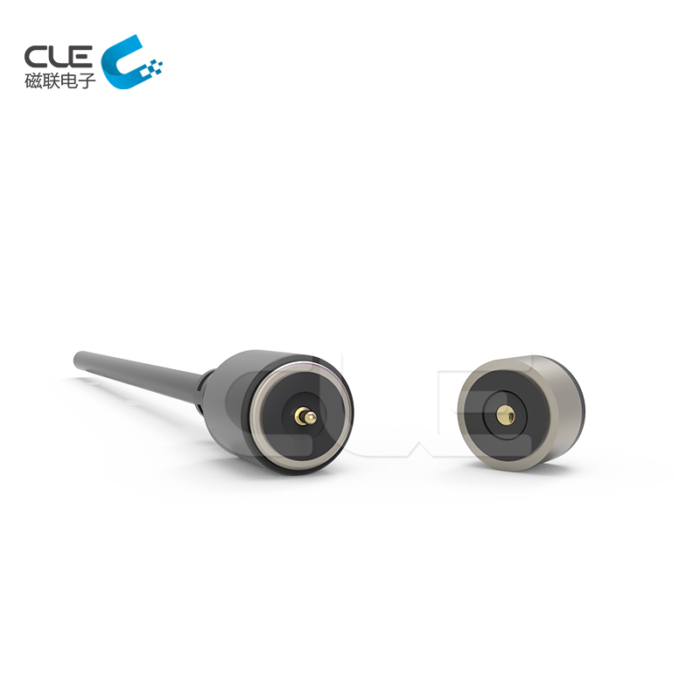

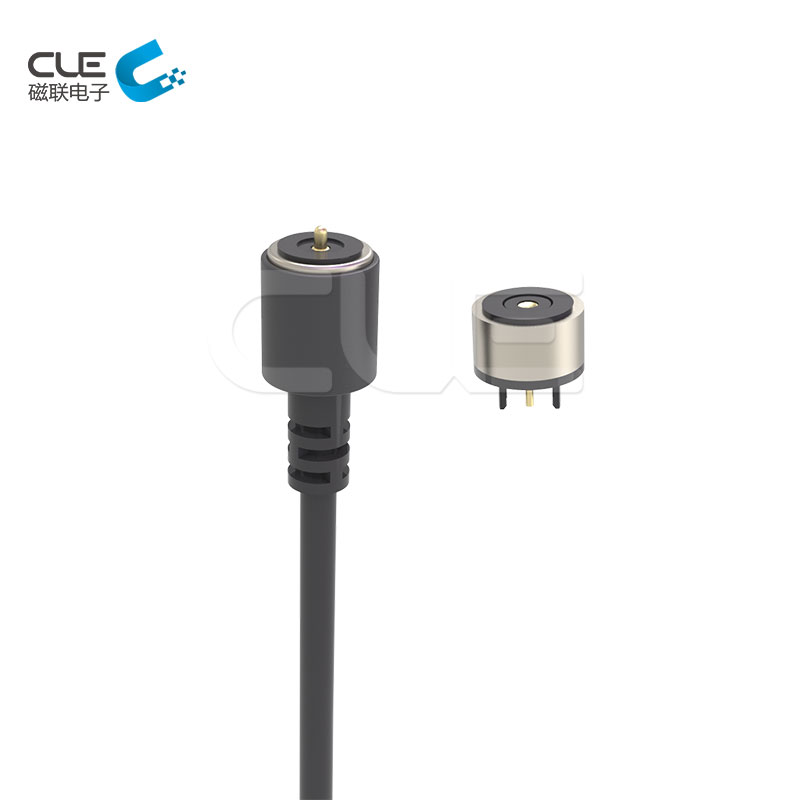

[CM-BP88311] Round male and female charging magnetic cable

  • P/N:CM-BP88311
  • Magnetic force: 5N
  • Rated voltage&current: 12V,2A
  • Life test: 100,000 cycles
  • Environment: anti-corrosion,48 hours salt-spray test
Inquiry Now

描述

Round male and female charging magnetic cable,100% open and short test,Magnetic design enables easy alignment and automatic connection. Magnetic adapter and converter seamlessly attach once they are in close proximity.Magnetic quick connect to usb cable within 1 second, one handed operation is very convenient even in the dark.

Male Part- – –Specification of  Round male and female charging magnetic cable

Products Round male and female charging magnetic cable
 Model No. M-BP60631
Voltage & Current 12 V,2 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Beauty equipment
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Female Part- – –Specification of Round male and female charging magnetic cable connector

Products Round male and female charging magnetic cable
Model No. CM-BP88311
Voltage & Current 12V, 2 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Beauty equipment
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
