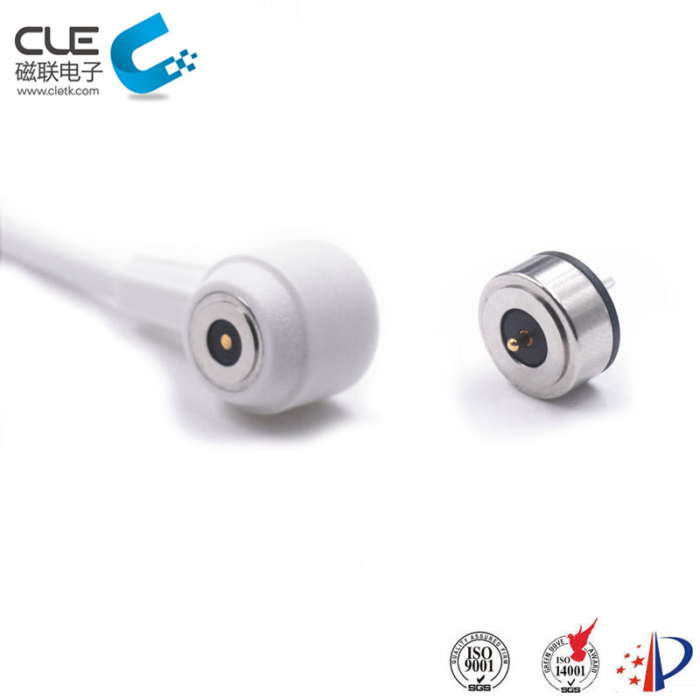

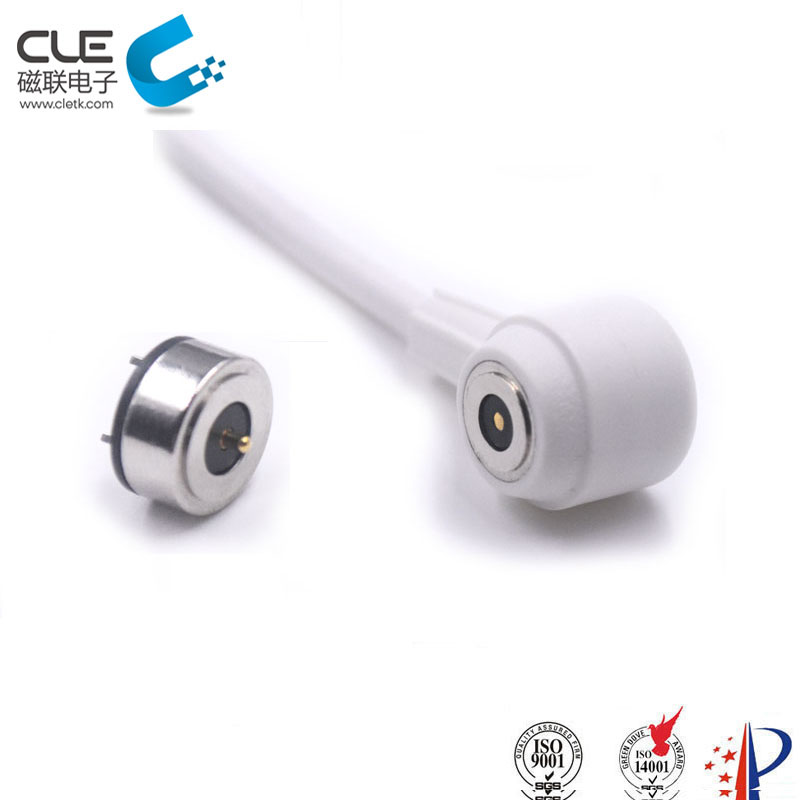

[CM-BP54421] Round type male and female magnetic power cable connector

    • P/N:CM-BP54421
    • Magnetic force:3 N ,Not degaussing.
    • Rate Voltage&Current: DC 52 V,3 A faster recharge
    • Life test: 20,000 cycles
    • Pass Rohs, reach, HF, environmental protection



Inquiry Now

Description

Round type male and female magnetic power cable connector form CLE,CLE focus on smart magnetic connector charging solutions of six years experience ,the magnetic connector replace tradition connector,it can achieve charging  in the moment. Customers don’t worry about move the device of trouble problem. They can move the device easier when you used the magnetic connector charging.

Female Part- – –Specification of Round type male and female magnetic power cable connector

Products Round type male and female magnetic power cable connector
 Model No. M-BP14202
Voltage & Current  24 V,5 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of Round type male and female magnetic power cable connector

Round type male and female magnetic power cable connector

Products Round type male and female magnetic power cable connector
Model No. CM-BP54421
Voltage & Current 52 V,3 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
