[CM-BP89601] Waterproof power magnetic cable connectors for asset strip

  • P/N: CM-BP89601
  • Rated Voltage&Current: DC 12 V,1 A
  • Life test: 10,000 cycles
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

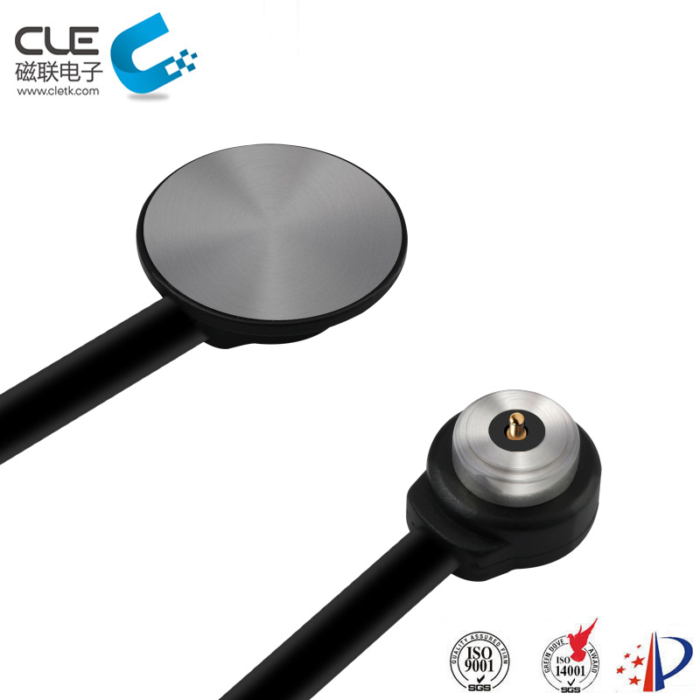

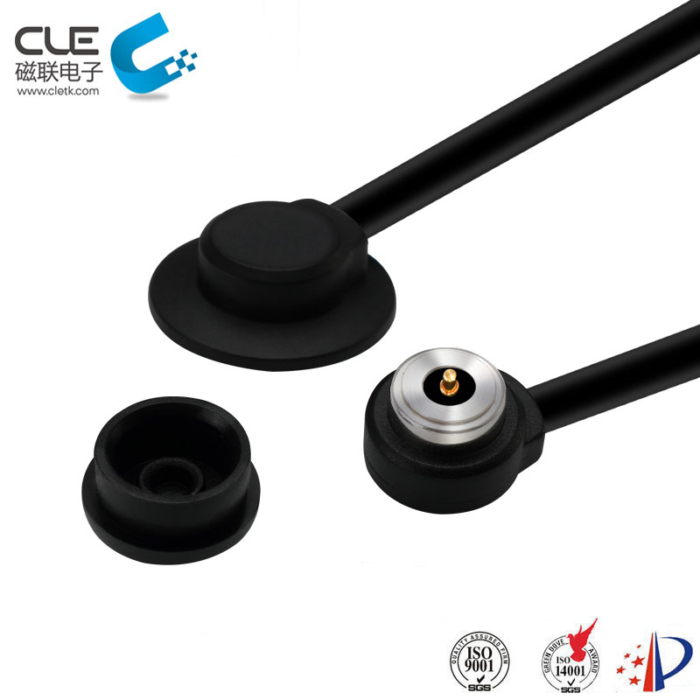

Waterproof power magnetic cable connectors for asset strip,CLE can custom a range of difficult shape magnetic cable connector, according to our customers about magnetic products and themselves application equipment needs,we engineers will design some solutions. its application is specially for asset strip, it has a unique shape.It is designed with compact size and proper contact force.

Male Part- – –Specification of  Waterproof power magnetic cable connectors for asset strip

Waterproof power magnetic cable connectors for asset strip

Products Waterproof power magnetic cable connectors for asset strip
Model No. CM-BP89601
Voltage & Current 12 V, 1 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
ApplicationS Asset strip
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
