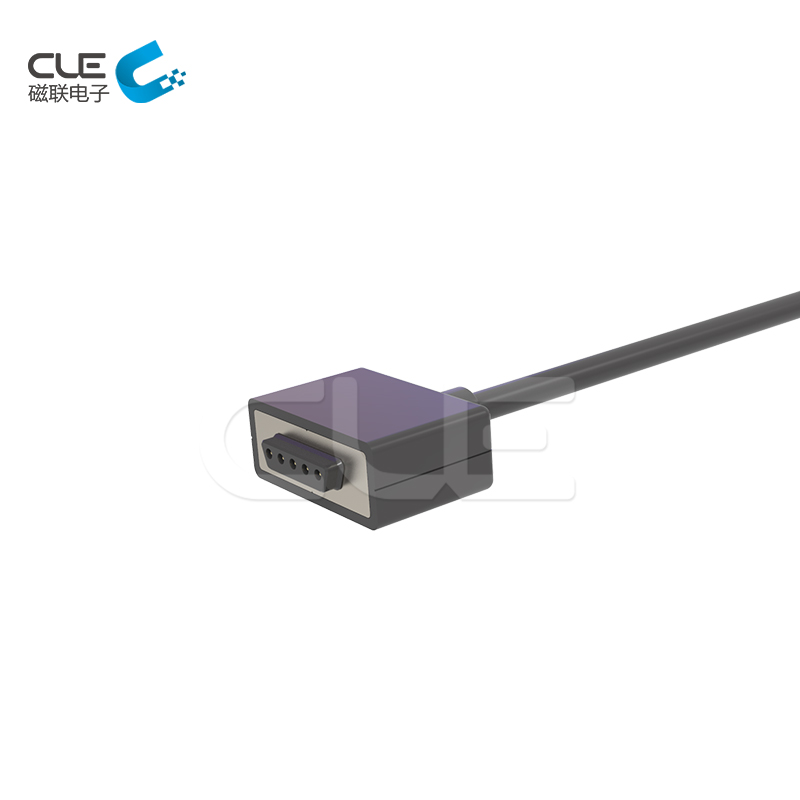

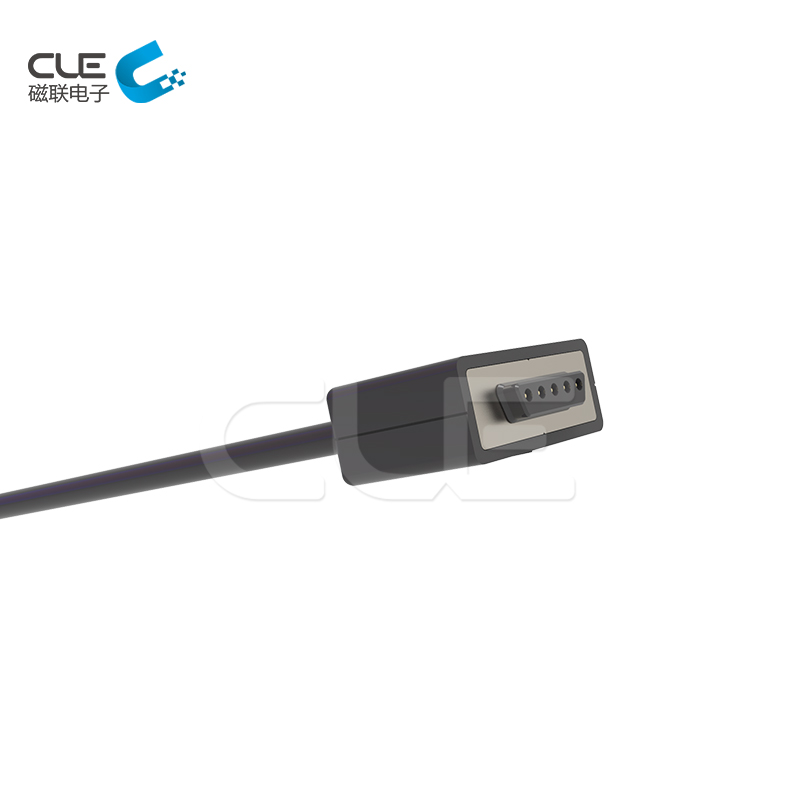

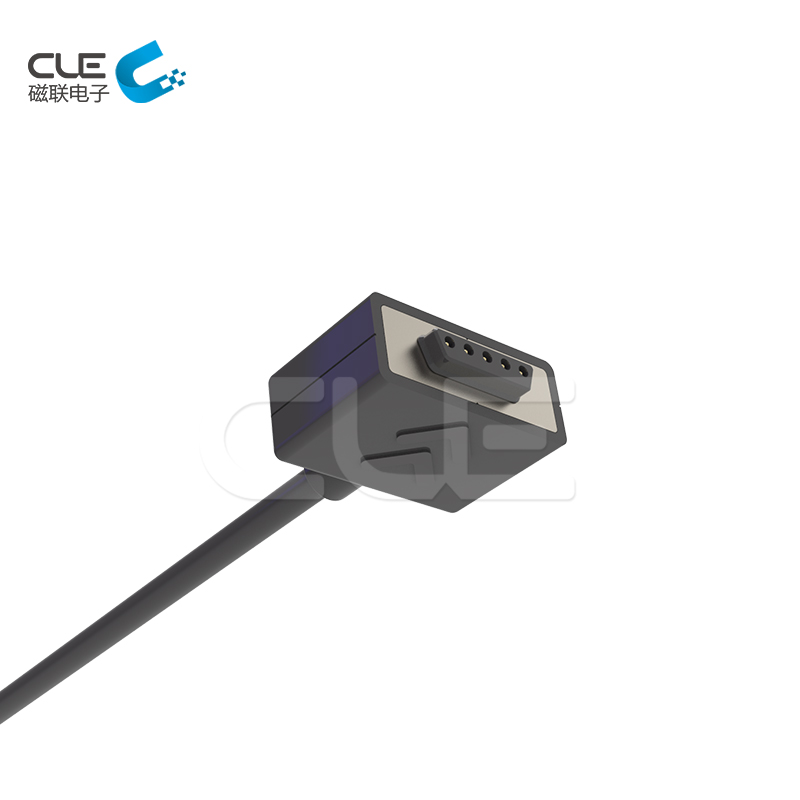

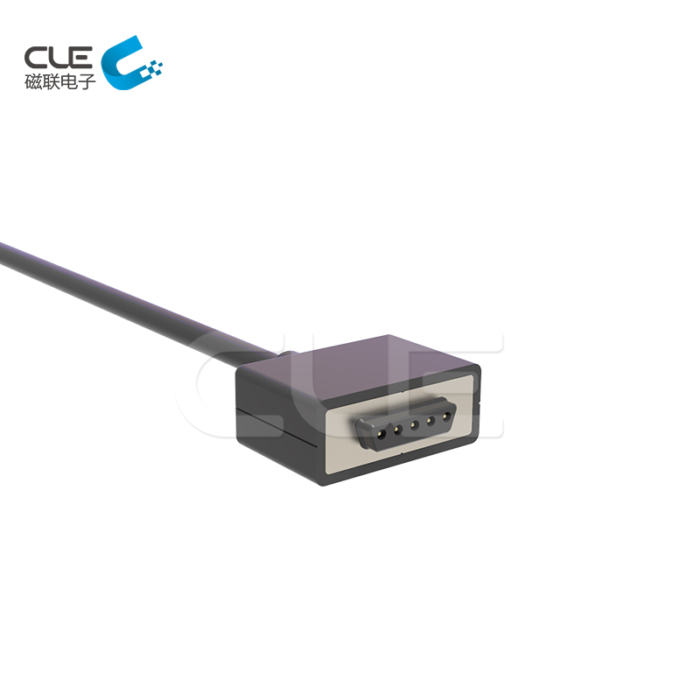

[CM-BP57011] CLE customized 5pin magnetic pin connector for moblie phone

  • P/N:CM-BP57011
  • Magnetic force 12N
  • Waterproof:IP67
  • Rate Voltaget&Current: DC12V,2 A
  • Life test: 50,000 cycles
  • Environment:anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protectionl
Inquiry Now

Description

CLE customized 5pin magnetic pin connector for moblie phone.Our product main is magnetic pin connector and magnetic cable connector.Over 100 items design solution,we’re customizing many more magnetic connectors according to our customers’ designs, welcome to customize your items with us. we product use NdFeB magnet, it’s can keep the magnetic force forever.

Female Part- – –Specification of  Waterproof  CLE customized 5pin magnetic pin connector for moblie phone

CLE customized 5pin magnetic pin connector for mobile phone

Products CLE customized 5pin magnetic pin connector for moblie phone
 Model No. M-BP57021
Voltage & Current 12 V, 2 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application Mobile phone
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of  CLE customized 5pin magnetic pin connector for moblie phone

CLE customized 5pin magnetic pin connector for mobile phone

Products CLE customized 5pin magnetic pin connector for moblie phone
Model No. CM-BP57011
Voltage & Current 12V, 2 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application Mobile phone
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
